Autel Dragonfish Standard
Autel Dragonfish Standard
SKU:52181152366866
Couldn't load pickup availability

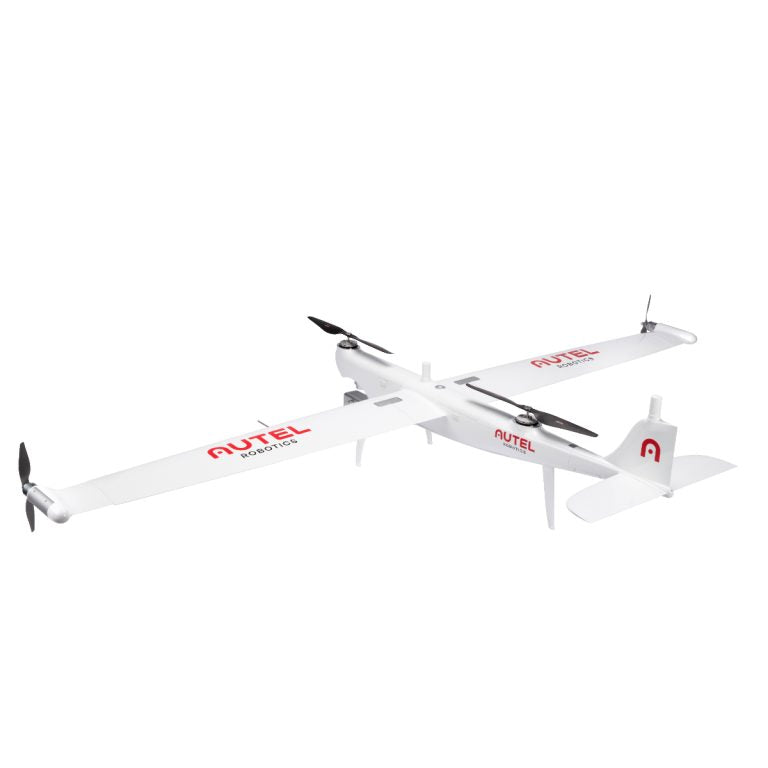

The Dragonfish Standard

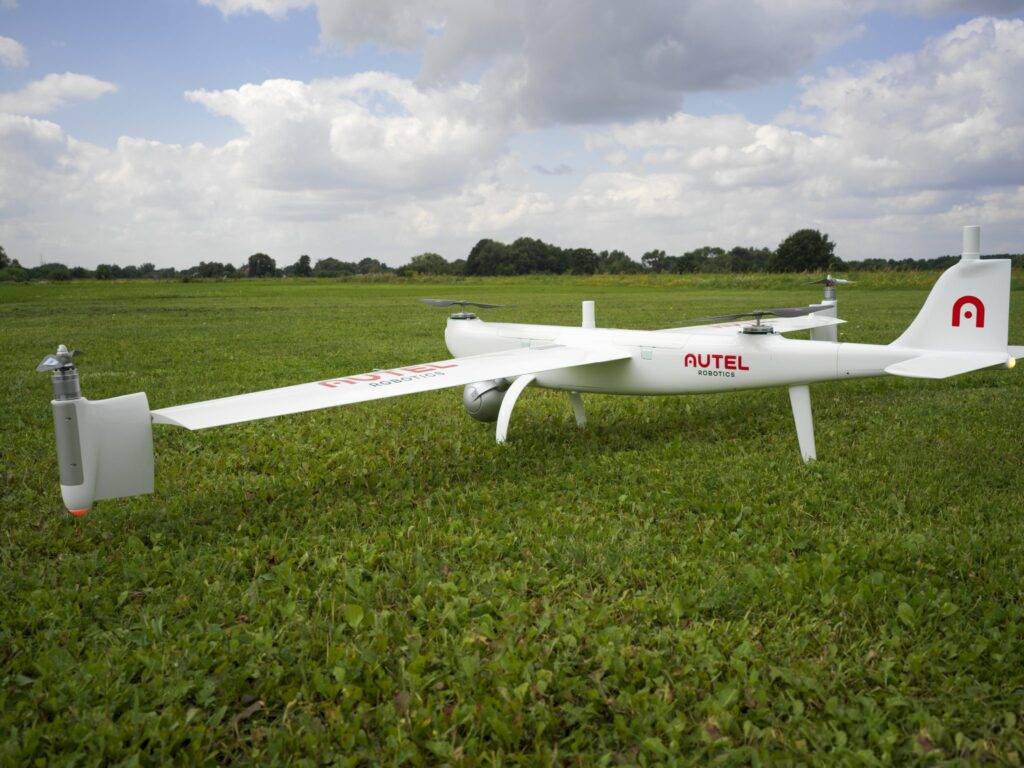

Purpose-built for extended ISR, mapping, and inspection missions, the Autel Dragonfish Standard combines fixed-wing efficiency with vertical takeoff and landing — no launcher, runway, or parachute required. Assemble solo, no tools needed, and be airborne in under 5 minutes.
Ordering & Lead Time
The Dragonfish Standard is available to order now. Due to inventory allocation at the Autel warehouse, fulfillment timelines vary and may extend up to 6 months depending on current stock. We strongly recommend contacting Agri Spray Drones before placing your order to confirm availability and get a realistic delivery estimate. You will be contacted within 1–2 business days of purchase with a confirmed ship date.
For time-sensitive deployments or bulk procurement, reach out to us directly before ordering.
Key Highlights
126-Minute Flight Time with Payload The Dragonfish Standard delivers up to 126 minutes of endurance while carrying a mission payload — tested at average cruise speed of 18 m/s with 5% battery reserve on return.
Tilt-Rotor VTOL Architecture Launches and recovers vertically like a quadcopter. Transitions automatically to fixed-wing cruise for maximum range and efficiency. If fixed-wing flight becomes unsustainable, the aircraft automatically reverts to multi-rotor mode.
RTK Dual-Module Precision Two onboard RTK modules provide centimeter-level positioning when paired with a GNSS base station: 1 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical in multi-rotor mode. Dual units provide mutual backup and improve image metadata quality.

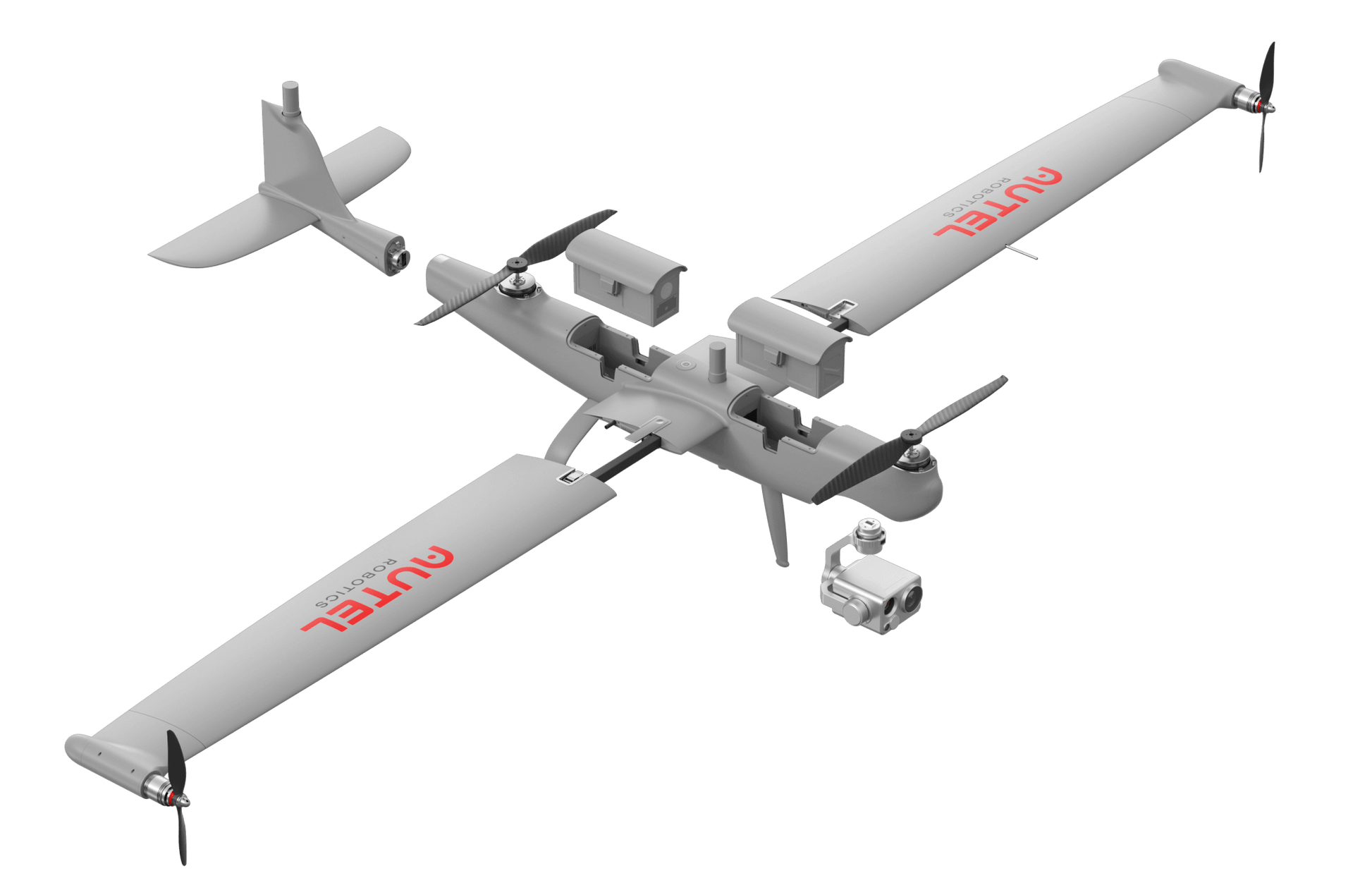

Interchangeable Payload System Supports toolless payload swaps across Z2, T3, T3H, L20T, and M1 gimbals. Payloads are cross-compatible with Dragonfish Lite and Pro to protect your investment.
Dual-Redundant Systems Redundant battery, barometer, positioning, compass, and IMU. Dual-redundant CAN bus communication. Automatic return-to-home on signal loss, GPS loss, or low battery.
30 m/s Max Speed | 15 m/s Wind Resistance Transitions from multi-rotor (0–17 m/s) to fixed-wing cruise (17–30 m/s) seamlessly. Handles up to 15 m/s sustained wind in fixed-wing mode.
6,000 m Service Ceiling Operates in high-altitude environments with full redundancy intact.
18.6-Mile Transmission Range With the included Autel Ground Control Station and base station relay. Direct GCS-to-aircraft: 6.2 miles. GCS features a 9.7" 1,000-nit sunlight-readable touchscreen with Samsung Exynos eight-core processor, 256 GB internal storage, and 4.5-hour battery life.
IP43 Weather Protection | Carbon Fiber Core Wind resistance rated to Level 6. Operates from -20°C to 50°C.

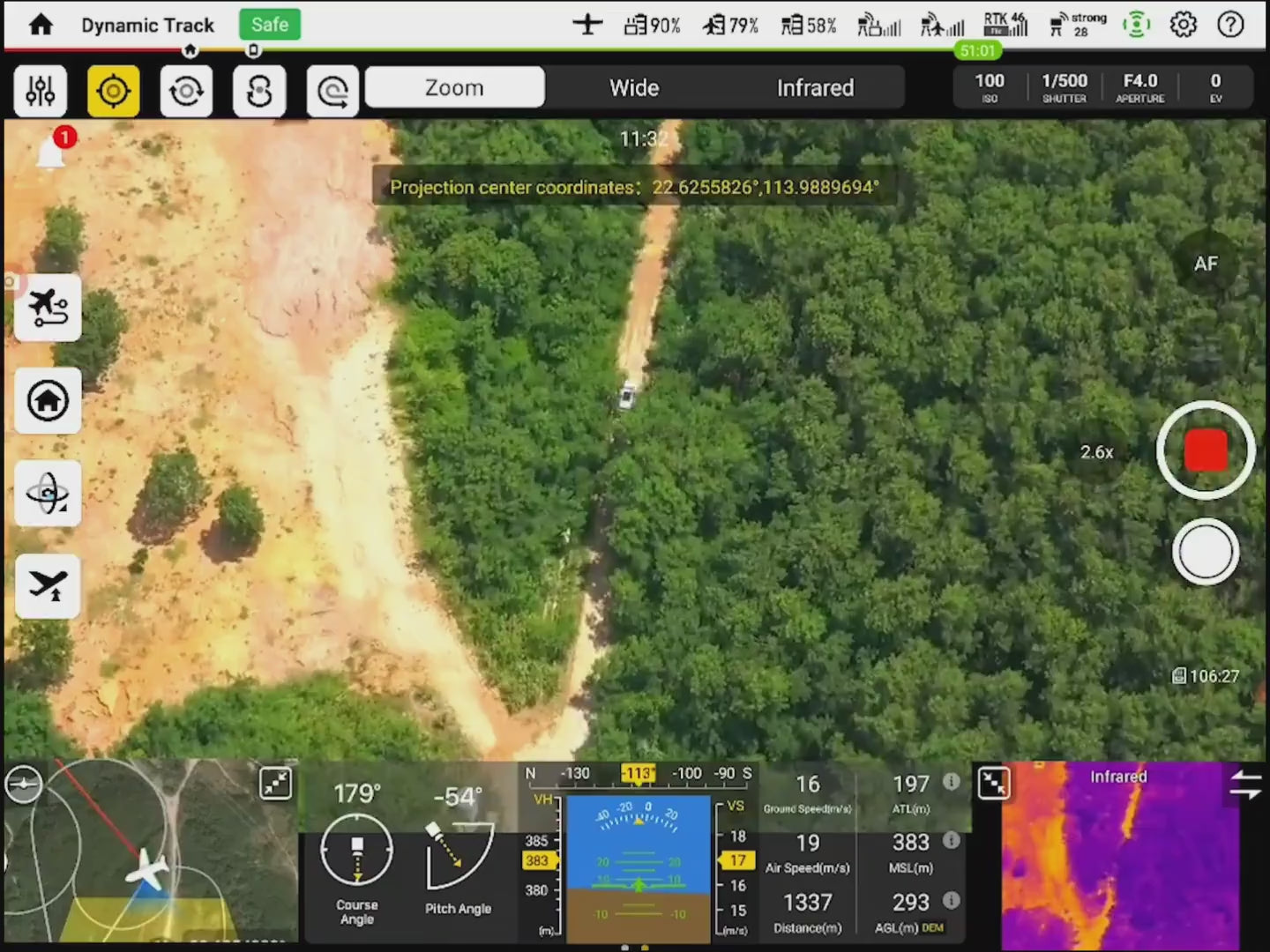

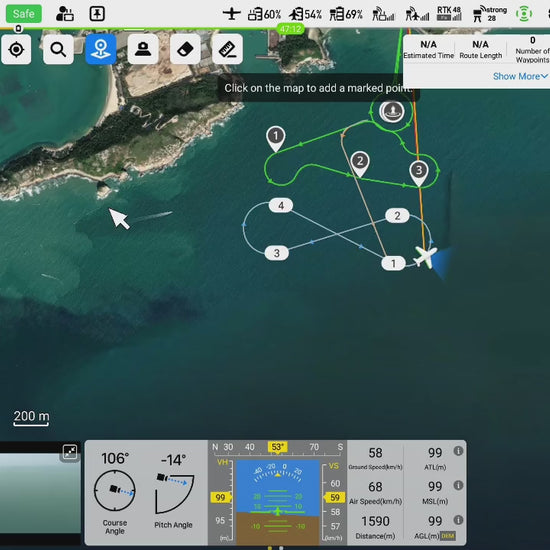

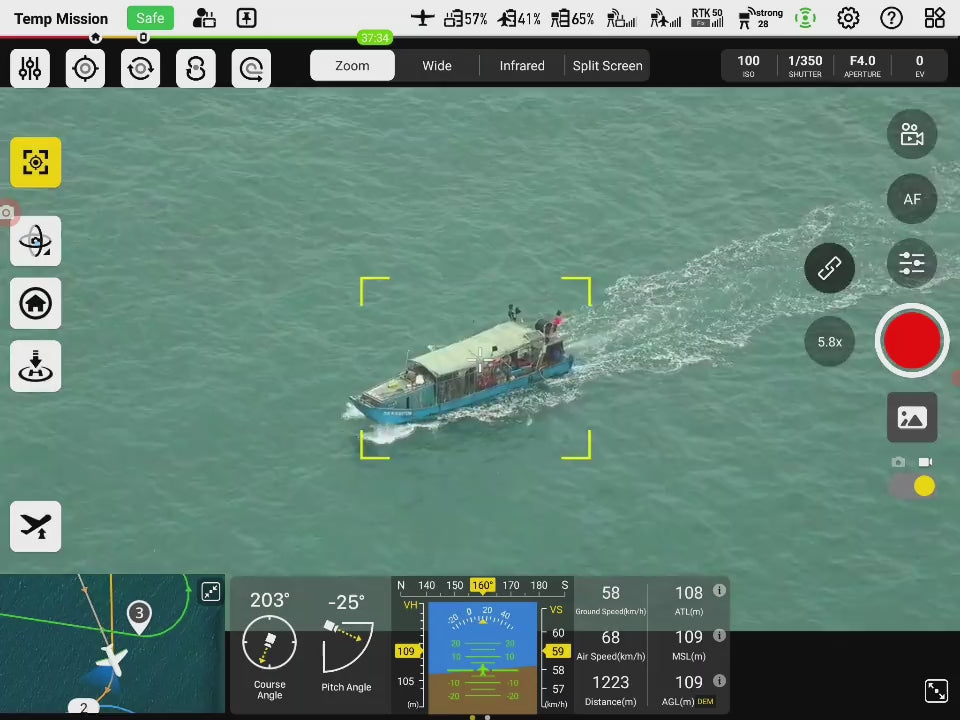

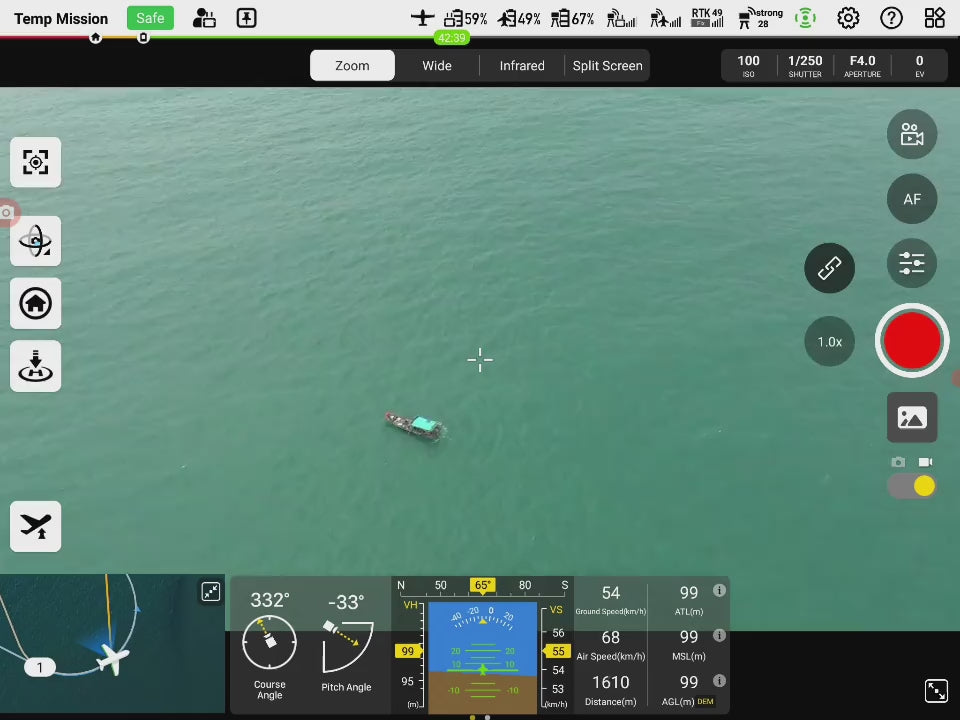

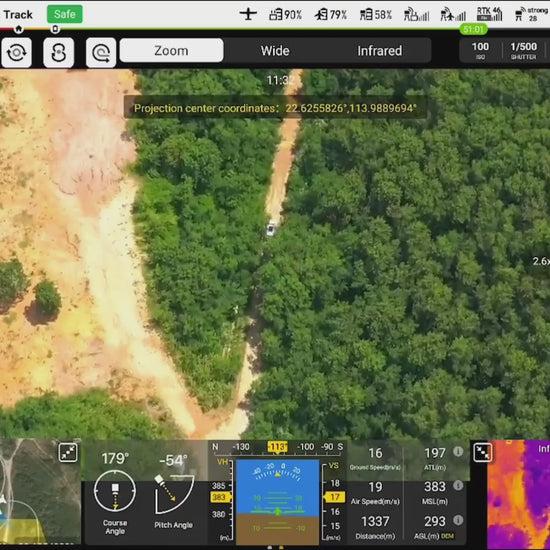

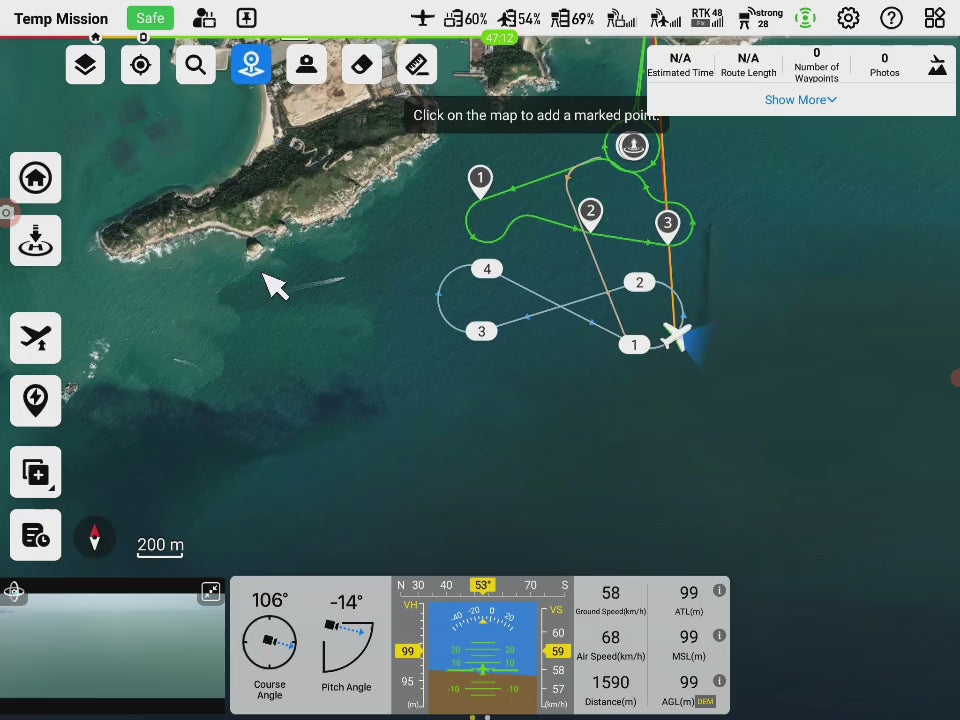

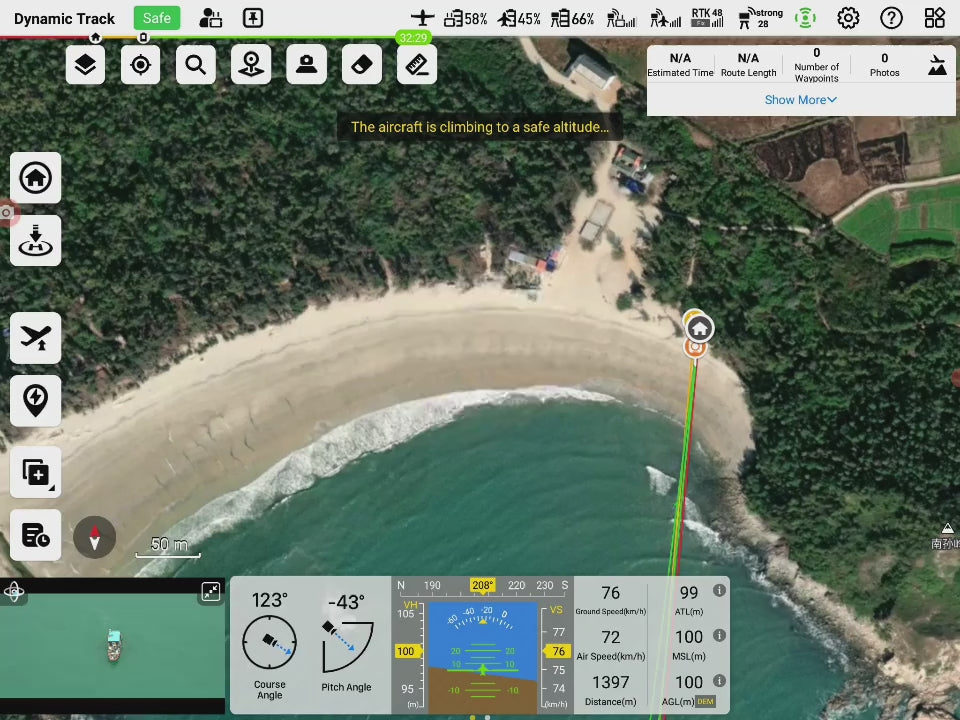

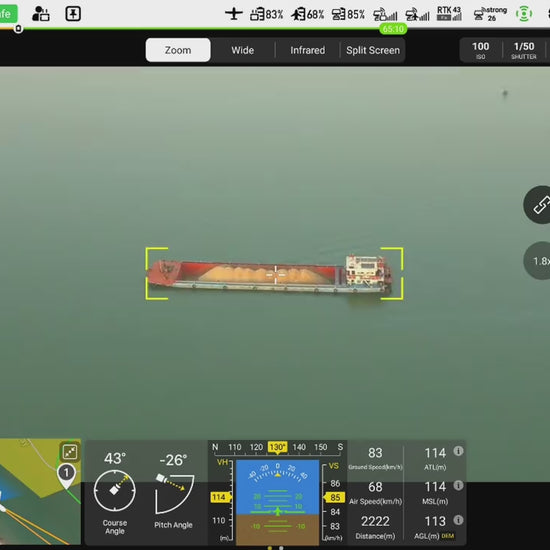

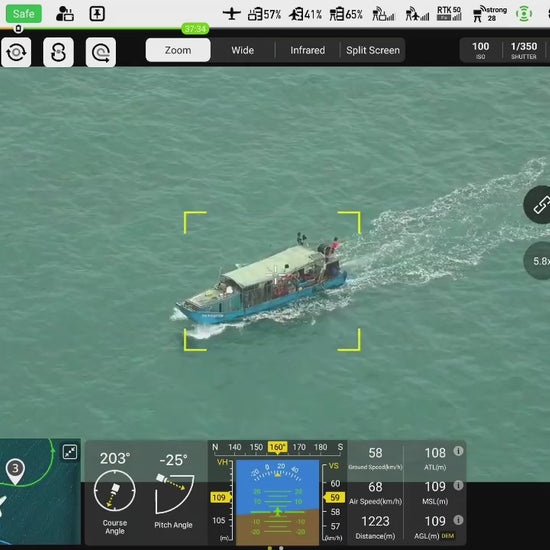

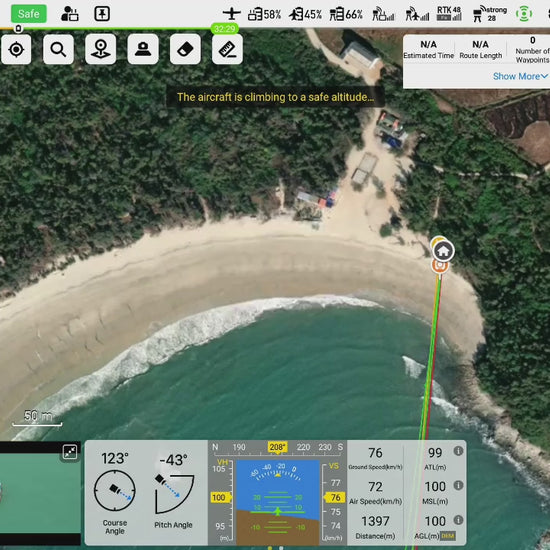

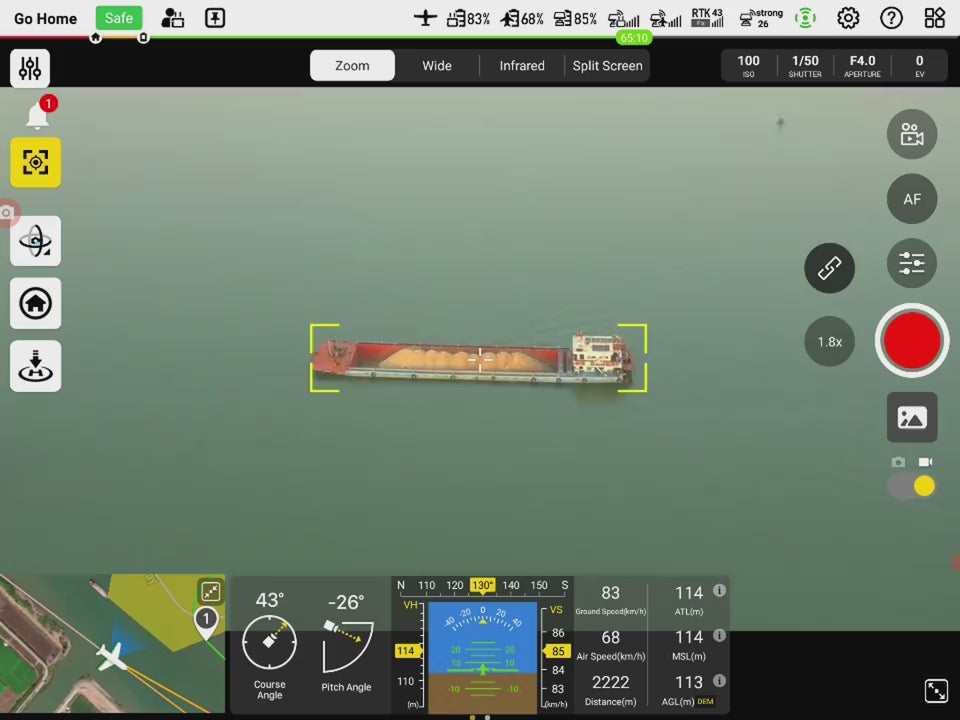

Autel Voyager Mission Software Pre-loaded on the GCS. Supports waypoint, polygon, and rectangular autonomous missions. Includes AI tracking, terrain follow, point-of-interest orbit, quick mission deviation, and flight history logging.
Technical Specifications
| Parameter | Dragonfish Standard |
|---|---|

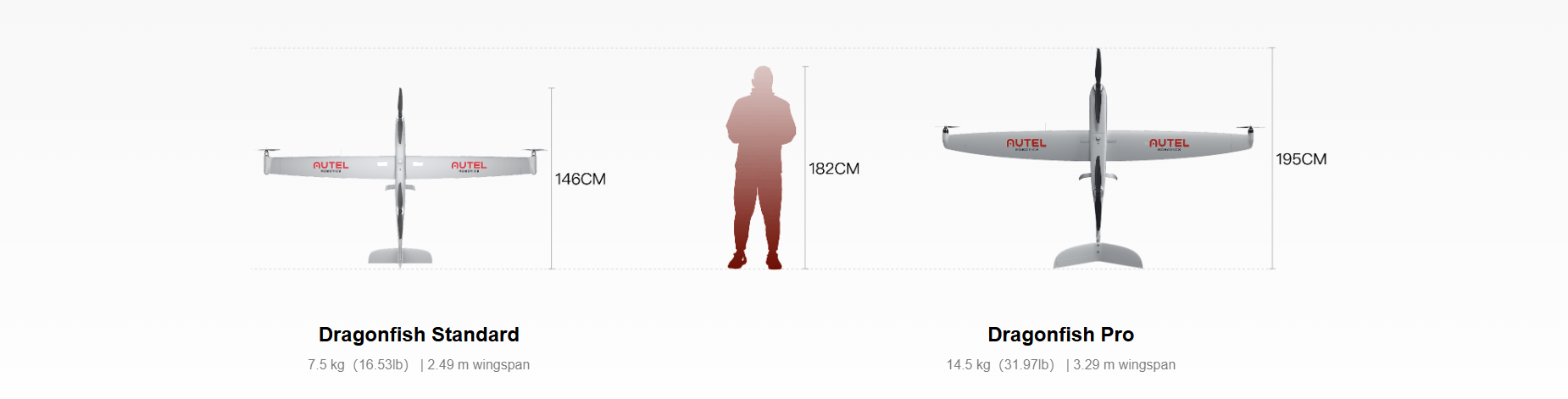

| Dimensions (L×W×H) | 1290 × 2300 × 460 mm |
| Weight (2 batteries, no gimbal) | 7.5 kg |
| Max Takeoff Weight | 9 kg |
| Max Payload | 1.5 kg |
| Single Battery Weight | 1.3 kg |
| Single Battery Energy | 277.2 Wh |
| Battery Charge Time | 120 min |
| Max Flight Time (with payload) | 126 min |
| Max Flight Speed | 30 m/s |
| Cruise Speed Range | 0–17 m/s (multi-rotor) / 17–30 m/s (fixed-wing) |
| Max Ascent Speed | 4 m/s (vertical) / 5 m/s (fixed-wing) |
| Max Descent Speed | 3 m/s (vertical) / 5 m/s (fixed-wing) |
| Max Wind Resistance | 15 m/s (fixed-wing) / 12 m/s (VTOL) |
| Service Ceiling (ASL) | 6,000 m |
| Hover Accuracy (GPS) | ±1.5 m horizontal / ±0.5 m vertical |
| Hover Accuracy (RTK) | ±0.1 m horizontal / ±0.1 m vertical |
| RTK Accuracy (multi-rotor) | 1 cm + 1 ppm (H) / 1.5 cm + 1 ppm (V) |
| RTK Accuracy (fixed-wing) | 3 cm + 1 ppm (H) / 3 cm + 1 ppm (V) |
| GNSS | GPS + GLONASS + BeiDou + Galileo |
| Supported Payloads | Z2, T3, T3H, L20T, M1 |
| Gimbal Mount | Fast Disassembly |
| Ingress Protection | IP43 |
| Operating Temperature | -20°C to 50°C |
| Video TX Frequencies | 902–928 MHz / 2.4 GHz / 5.15–5.25 GHz / 5.725–5.85 GHz |
| Data TX Frequency | 5.729–5.771 GHz |
| Max TX Range (FCC, unobstructed) | 10 km (GCS standalone) / 30 km (with base station) |
| Assembly Time | < 5 min (no tools) |
| System Self-Check | 5 seconds |
DG-L20T — EO/IR/Laser Payload
Triple-sensor gimbal featuring 4K 20x optical zoom, 12MP wide-angle, and 640×512 high-resolution infrared — all on a 3-axis stabilized platform with integrated laser distance measurement radar. Built for night ops, SAR, perimeter security, and thermal inspection. Compatible with Dragonfish Standard and Pro.
What's in the Box
- Autel Dragonfish Standard aircraft
- 2× flight batteries (1.3 kg / 277.2 Wh each)
- Autel Ground Control Station (9.7", 1,000-nit, 256 GB)
- RTK Base Station
- Payload (L20T)
- Carry case
Flight time data obtained from outdoor tests at 18 m/s average speed, no wind, no rain, battery cycle count ≤5, 5% battery remaining on RTH.
